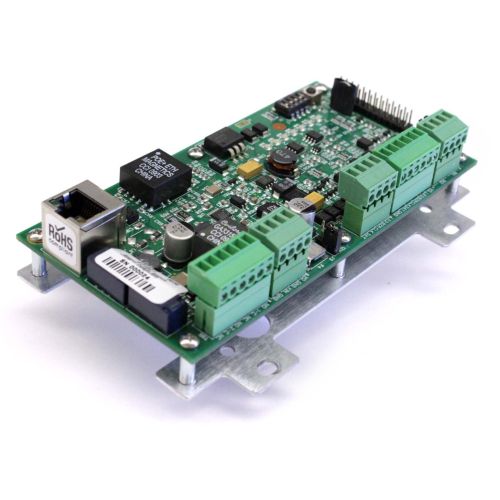

AccessNsite IDC-1 One Door Integrated Distributed Controller
AccessNsite's one door Integrated Distributed Controller (IDC-1) is the smallest controller in Quintron’s latest generation of intelligent controller boards. In addition to controlling and monitoring up to 16 subcontrollers (SRI, DRI, ERI, IP, OP or KRI), the IDC-1 also provides the on-board I/O necessary to control one door. Readers, keypads, and readers with integrated keypads that use Wiegand, clock-and-data, or RS-485 signaling are supported.
This Mercury Part number is interchangeable with LNL-2210
| Manufacturer Part Number | LP1501 |
|---|---|
| Features | One Door Integrated Distributed Controller Compact network intelligence at the door • Most widely accepted access control hardware due to its reliability and open architecture
|
One Door Integrated Distributed Controller
Compact network intelligence at the door
• Most widely accepted access control hardware due to its reliability and open architecture
• Controls 1 door/ 2 readers
• Manages up to 17 doors when using optional sub-controllers
• Tamper input
• 390,000 card holders (max); 240,000 card holders (typical)
• Mounting bracket has holes that match Single Reader Interface footprint
• Up to 50,000 event buffer
• PIV-II, CAC, TWIC compatible
• AES 128 bit encryption
• Supports up to 8 programmable card formats
• 12v to 24v DC operation or PoE
• Field upgradable firmware
• Mounts in 3-gang junction box
• UL listed 294/1076
• 1 year limited warranty
