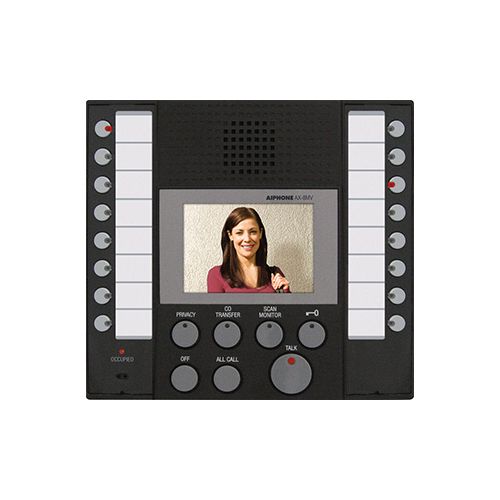

Audio Video Master Station - The AX-8MV is an audio video master station for the AX Series. The unit is CAT-5e homerun wired to it's CEU and features a 3 -1/2" TFT monitor, an oversized TALK button to activate the VOX or PTT style communication, door call-in indicator, call button for other master stations in the system, a call tone volume control and a button for door release. The AX-8MV can communicate to 8 masters and 8 door stations. Add-on selectors (AX-16SW) can be added to increase the number of doors to maximum 120.
More Information
Manufacturer Part Number
AX-8MV
Features
CAT-5e wiring homerun from each station
Up to 8 masters and 120 remote stations
Two talk channels
PTT or VOX operation
Master-to-master selective calling
All Call between master stations only
Composite video output from CEU and master station
Standard or priority call levels from door stations
Communication privacy
Electronic access control integration*
CCTV system integration*
Selective remote control (e.g. door release)
PC interface for programming and event logging
Scan monitoring of selected remote stations
Rack or wall mountable CEU
Calls queued in order of priority and call-in time
Compatible with IE Series door stations
Optional features: headset, footswitch, call transfer to telephone* and PC remote control
* Interface requires custom program (not supplied by Aiphone)
