Altronix Netway1 Single Port POE Injector Midspan

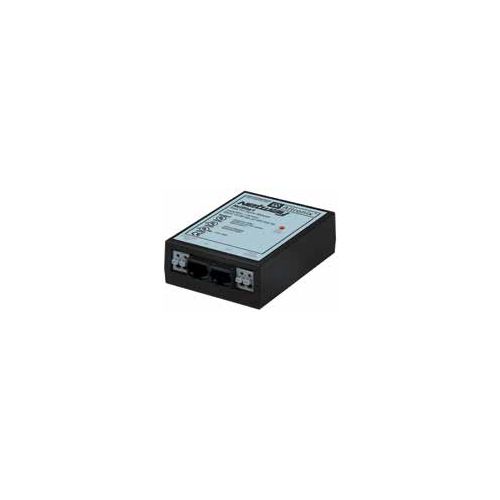

NetWay1 - Single Port PoE Injector
for Standard Network Infrastructure

Input:

• 24VAC @ 1.2 amp or 24VDC @ 1.2 amp.

Data:

• One (1) PoE port provides power and passes data over ethernet (CAT5) cable up to 100m (328 ft.).
• Data rate: 10/100 Base-T compliant.
Output Power:
• Port provides up to 15.4W max.
• IEEE
802.3af compliant.
• 48VDC.
• Short circuit protection.
Functions:
• Port status LED.
• PoE manual shutdown
(For UL 60950-1 applications only).
• Auto detection and protection of legacy
non-PoE cameras/devices.
Electrical:
• Operating temperature: 0º C to 49º C ambient.
• 14.74 BTU/Hr.
• System AC input VA requirement: 28.8VA.
Accessories:
NetWay1512:
• 13W adapter for non-PoE compliant IP cameras.
NetWayXT:
• PoE repeater module extends range 100m (328 ft.).
Mechanical:
• Lightweight molded Acrylonitrile Butadine Styrene
enclosure is RoHS compliant.
• Compact insulated housing.
• Spring terminals (input and PoE shutdown).
• Dimensions (W x L x H approx.):
2.5” (63.5mm) x 3.8” (96.52mm) x 1” (25.4mm)
• Product weight (approx.): 1.54 lbs. (0.7 kg).
• Shipping weight (approx.): 1.6 lbs. (0.73 kg).
NetWay1 - Single Port PoE Injector
for Standard Network Infrastructure
Rev. DSNetWay1_12122012
