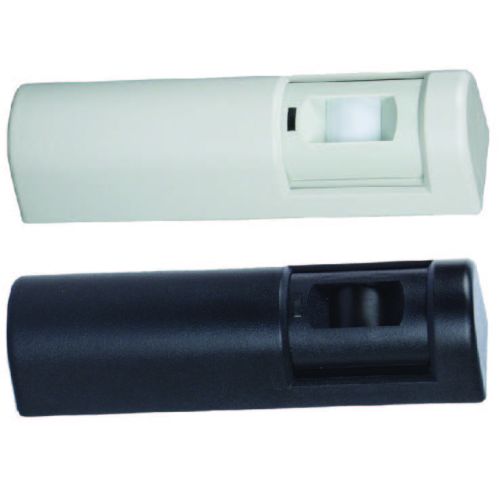

The DS160 Series consists of the DS160 Detector (light gray) and the DS161 Detector (black) specifically designed for Request-to-exit (REX) applications.
More Information
Manufacturer Part Number
DS160
Features
Technical Specifications Environmental Operating Temperature: -29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1000 MHz at 50 V/m Complies with Environmental Class II (EN50130-5)
Mechanical Dimensions: 4.5 cm x 17.1cm x 4.4 cm (1.80 in. x 6.75 in. x 1.75 in.)
Material: High impact ABS plastic enclosure
Modes Power Loss Default: Programmable fail-safe or fail-secure modes
Timer: Programmable reset accumulative or non-reset counting mode.
Electrical Current Draw: 8 mA nominal standby current, 39 mA at 12 VDC in alarm
Voltage: 12 VAC or VDC to 30 VAC or VDC Alarm
Output: Two Form C relay contacts each rated 1 A at 30 VAC or VDC for resistive loads
Indicators: 1 activation LED Relay
Latch Time: Adjustable from 0.5 sec to 64 sec.
