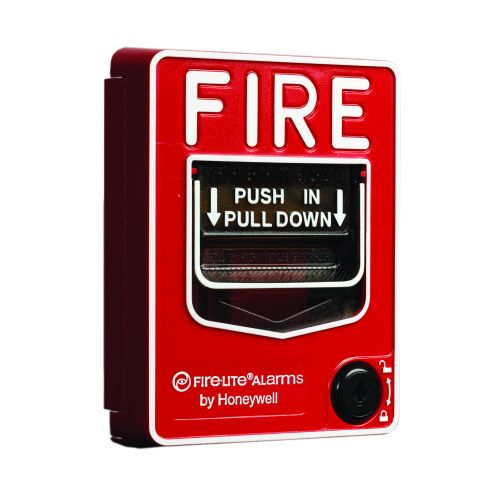

FireLite Alarms BG-12LXSP Addressable Series Pull Station- Spanish
FireLite Alarms BG-12LXSP Addressable Series Pull Station- Spanish
The BG-12LXSP Addressable pull station is a non-coded, dual-action manual pull station with a key-lock reset feature. It also has dual language (Spanish/ English) labeling and operating instructions. It provides FireLite intelligent control panels with one addressable alarm initiating input. The addressable module is housed inside the pull station. The BG-12LXSP is compatible with all FireLite intelligent panels. The BG-12LXSP meets the ADAAG controls and operating mechanisms guidelines section 4.1.3[13]), and the ADA requirement for a 5 lb. maximum pull force to activate the pull station. Operating instructions are molded into the pull station handle along with Braille text.
| Manufacturer Part Number | BG-12LXSP |
|---|---|
| Features | • Maintenance personnel can open station for inspection and address setting without causing an alarm condition. • Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm. • Handle latches in down position and the word “ACTIVATED” appears to clearly indicate the station has been operated. • Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm² wire). • Can be surface mounted (with SB-10 or SB-I/O) or semiflush mounted. Semi-flush mount to a standard singlegang, double-gang, or 4" (10.16 cm) square electrical box. • Smooth dual-action design. • Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]); meets ADA requirement for 5 lb. maximum activation force. • Highly visible. • Attractive shape and textured finish. • Key reset. • Includes Braille text on station handle. • Optional trim ring (BG12TR). • Meets UL 38, Standard for Manually Actuated Signaling Boxes. • Spanish/English |
• Maintenance personnel can open station for inspection and address setting without causing an alarm condition.
• Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm.
• Handle latches in down position and the word “ACTIVATED” appears to clearly indicate the station has been operated.
• Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm² wire).
• Can be surface mounted (with SB-10 or SB-I/O) or semiflush mounted. Semi-flush mount to a standard singlegang, double-gang, or 4" (10.16 cm) square electrical box.
• Smooth dual-action design.
• Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]); meets ADA requirement for 5 lb. maximum activation force.
• Highly visible.
• Attractive shape and textured finish.
• Key reset.
• Includes Braille text on station handle.
• Optional trim ring (BG12TR).
• Meets UL 38, Standard for Manually Actuated Signaling Boxes.
• Spanish/English
