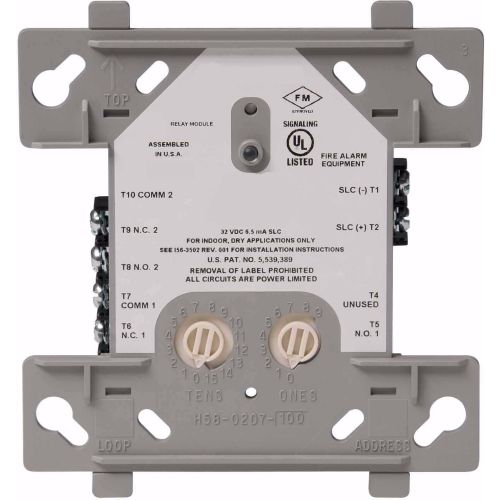

The CRF-300(A) Addressable Relay Module provides the system
with a dry-contact output for activating a variety of auxiliary
devices, such as fans, door holders, dampers, control
equipment, etc. Addressability allows the dry contact to be
activated through panel programming, on a select basis.
LiteSpeed™ is a communication protocol developed by
Fire•Lite Engineering that greatly enhances the speed of communication
between analog intelligent devices. Intelligent
devices communicate in a grouped fashion. If one of the
devices within the group has new information, the panel CPU
stops the group poll and concentrates on single points. The
net effect is response speed greater than five times that of
other designs.
More Information
Manufacturer Part Number
CRF-300
Features
• Built-in type identification automatically identifies these devices to the control panel.
• Internal circuitry and relay powered directly by two-wire SLC loop.
• Integral LED “blinks” green each time a communication is received from the control panel and turns on in steady red when activated.
• High noise immunity (EMF/RFI).
• Wide viewing angle of LED.
• SEMS screws with clamping plates for wiring ease.
• Direct-dial entry of address: 01– 159 for MS-9600(A) series panels, 01 – 99 on MS-9200UDLS(A) and MS-9050UD(A).
