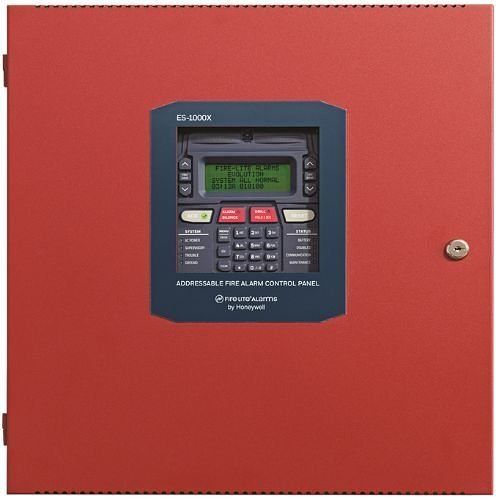

Fire-Lite's ES-1000X is an intelligent, 954-Point capacity addressable fire alarm control panel (FACP) with pre-installed loop card. The ES-1000X supports up to 318 addressable devices (159-Detectors and 159-Modules) per SLC with maximum of three loops. The ES-1000X features built-in dual path (POTS and IP) communications, programmable buttons and support for combined fire and CO detection. The ES-1000X is a direct replacement for the MS-9600UDLS.
Fire-Lite's ES-1000X is an intelligent, 954-Point capacity addressable fire alarm control panel (FACP) with pre-installed loop card. The ES-1000X supports up to 318 addressable devices (159-Detectors and 159-Modules) per SLC with maximum of three loops. The ES-1000X features built-in dual path (POTS and IP) communications, programmable buttons and support for combined fire and CO detection. The ES-1000X is a direct replacement for the MS-9600UDLS.
More Information
Manufacturer Part Number
ES-1000x
Features
Supports up to 954 devices for larger and more complex installations
Single SLC that provides support for up to 318-Addressable devices (159-Detectors and 159-Modules) per SLC with maximum 3-Loops
Built-in dual-path communicator (POTS and IP)
Optional CLSS or GSM Central Station Communicators
Upload / download panel programming database and flash firmware with USB thumb drive
Support for addressable multi-criteria fire and CO detector
Four programmable function keys
Auto-programming (learn mode) reduces installation time (reports two devices set to the same address)
Four independently programmable, built-in, Class A or Class B NAC circuits
Trouble indication for SLC devices not programmed
Write Your Own Review
Supports up to 954 devices for larger and more complex installations
Single SLC that provides support for up to 318-Addressable devices (159-Detectors and 159-Modules) per SLC with maximum 3-Loops
Built-in dual-path communicator (POTS and IP)
Optional CLSS or GSM Central Station Communicators
Upload / download panel programming database and flash firmware with USB thumb drive
Support for addressable multi-criteria fire and CO detector
Four programmable function keys
Auto-programming (learn mode) reduces installation time (reports two devices set to the same address)
Four independently programmable, built-in, Class A or Class B NAC circuits
