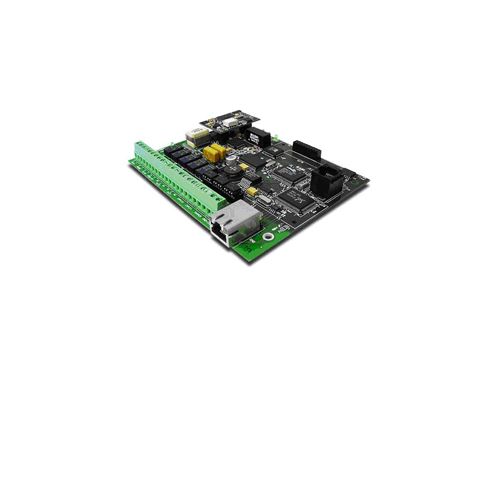

The new FireWatch IPDACT-2UD are communicators based on the original IPDACT optional digital alarm communications module from Fire.Lite. The new IPDACT-2 duplicates the previous function found in the original IPDACT but adds two supervised inputs, two additional outputs, an improved terminal strip and the addition of several legacy panels to the compatibility list. The IPDACT-2UD version 6.0 adds a modem daughter board (2UD) that supports upload/ download over the Internet or a customer's Intranet.
More Information
Manufacturer Part Number
IPDACT-2UD
Features
Listed to UL Standard 864, Ninth Edition when used with Fire-Lite UL 864 Ninth Edition-listed panels.
Eliminates the cost of two dedicated phone lines. Only the customer’s shared IP equipment is required.
Can use newer low-cost, non-analog, digital telephone services such as cable or fiber optics.
Increases connection supervision to the central station from the once-a-day test signal to once every 30 - 90 seconds.
Requires no change to the existing panel configuration. The IP Communicator connects directly to the primary and secondary analog panel telephone ports.
Fast alarm transmission (less than 10 second transmission time).
Works over any type of customer-provided Ethernet 10/100 Base network connection (LAN or WAN), DSL modem or cable modem.
Data transmits over standard contact-ID protocol but is secured with the industry’s highest level of encryption (AES 512 bit).
Supports both dynamic (DHCP) or Public and Private Static IP addressing.
Write Your Own Review
Listed to UL Standard 864, Ninth Edition when used with Fire-Lite UL 864 Ninth Edition-listed panels.
Eliminates the cost of two dedicated phone lines. Only the customer’s shared IP equipment is required.
Can use newer low-cost, non-analog, digital telephone services such as cable or fiber optics.
Increases connection supervision to the central station from the once-a-day test signal to once every 30 - 90 seconds.
Requires no change to the existing panel configuration. The IP Communicator connects directly to the primary and secondary analog panel telephone ports.
Fast alarm transmission (less than 10 second transmission time).
Works over any type of customer-provided Ethernet 10/100 Base network connection (LAN or WAN), DSL modem or cable modem.
Data transmits over standard contact-ID protocol but is secured with the industry’s highest level of encryption (AES 512 bit).
Supports both dynamic (DHCP) or Public and Private Static IP addressing.
