Fire-Lite W-BG12LX SWIFT Wireless Addressable Pull Station, Includes Four CR123A Batteries, Honeywell International, Inc, Fire-Lite Alarms by Honeywell

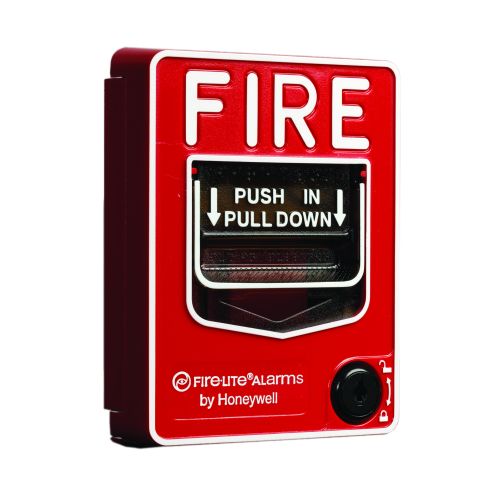

The Fire·Lite BG-12LX is a state-of-the-art, dual-action (i.e.,
requires two motions to activate the station) pull station that
includes an addressable interface (mounted inside) for
Fire·Lite’s addressable fire alarm control panels (FACPs)
Because the BG-12LX is addressable, the control panel can
display the exact location of the activated manual station. This
leads fire personnel quickly to the location of the alarm.
Pushing in, then pulling down on the handle causes it to latch
in the down/activated position. Once latched, the word “ACTIVATED”
(in bright yellow) appears at the top of the handle,
while a portion of the handle protrudes from the bottom of the
station. To reset the station, simply unlock the station with the
key and pull the door open. This action resets the handle; closing
the door automatically resets the switch.
Each manual station, on command from the control panel,
sends data to the panel representing the state of the manual
switch. Two rotary decimal switches allow address settings
(1 – 159 with Breakaway Tab removed for MS-9600 Series, 1 –
99 and MS-9200UDLS, 1 – 50 for MS-9050UD).
More Information
Manufacturer Part Number
W-BG12LX
Features
• Maintenance personnel can open station for inspection and address setting without causing an alarm condition.
• Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm.
• Handle latches in down position and the word “ACTIVATED” appears to clearly indicate the station has been operated.
• Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm² wire).
• Can be surface mounted (with SB-10 or SB-I/O) or semiflush mounted. Semi-flush mount to a standard singlegang, double-gang, or 4" (10.16 cm) square electrical box.
• Smooth dual-action design.
• Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]); meets ADA requirement for 5 lb. maximum activation force.
• Highly visible.
• Attractive shape and textured finish.
• Key reset.
• Includes Braille text on station handle.
• Optional trim ring (BG12TR).
• Meets UL 38, Standard for Manually Actuated Signaling Boxes.
