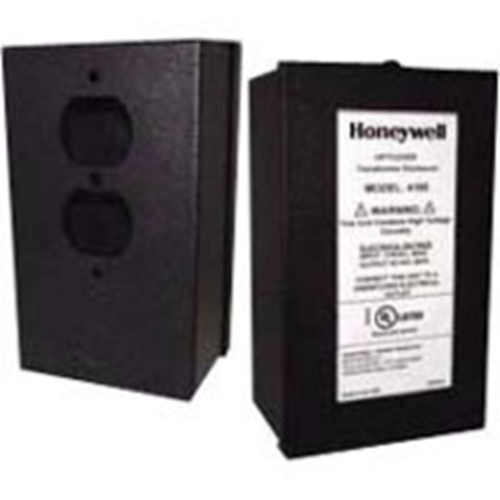

Honeywell HPTCOVER Plug in Transformer
The HPTCOVER is a transformer enclosure used in applications where the installation requires a plug-in transformer to be securely affixed to an AC wall outlet. This steel enclosure mounts over any duplex wall receptacle and attaches like an electrical wall plate. Two screws secure the cover to the enclosure to prevent unauthorized access to the plug-in transformer. With three convenient half-inch conduit knockouts in the bottom, side, and back, the low-voltage wiring can easily exit to an alarm panel or device that requires power.
| Manufacturer Part Number | HPTCOVER | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Features |
| ||||||||||||||||||||||||
|
Specifications |
|
|
Model 4165 |
|
|
Input 115VAC 60Hz |
|
|
Output: 16 VAC 40VA |
|
|
Enclosure Dimensions: 3.65”W x 6.2”H x 2.56”D |
|
|
CONNECT THIS UNIT TO A UNSWITCHED ELECTRICAL OUTLET |
|
|
Recommended operating Temperature: 22°C/ 72°F. |
|
|
16-gauge steel construction with black pebble-grained powder-coat finish. |
|
|
Three convenient ½” knockouts located in the bottom, side and back of enclosure. |
|
|
Mounting screws on front cover to prevent unauthorized access. |
|
|
Requires minimal Installation. |
|
|
Designed to securely mount over most standard electrical wall plates |
|
