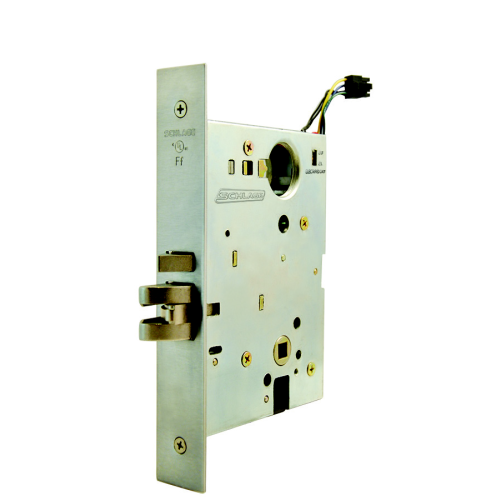

This L9090EU Electrified Mortise Lockset Storeroom Function Fail Secure can be configured to meet your facilities needs.
All locks feature automatic detection and operation with 12 or 24V DC, and a case-mounted switch that allows customer selection of EL (fail safe) or EU (fail secure) operation. Please specify lock function as EL or EU for default switch postion. Locks also come standard with Allegion Connect molex connector with 3” lead. Allegion Connect is a molex connector system that allows rapid installation of locks when used with Allegion Connect Harnesses and Allegion Connect Hinges. For more information speak with your sales representative.The molex connector can also be cut off so that the lock can be installed with traditional splicing. Request to Exit is an available option on all electrified functions; specify “RX” in the option string.
Nothing is tougher. At Schlage we know that every product you specify has to stand up to constant use and abuse. Your building’s locking systems face an additional challenge – keeping people and other assets safe while delivering constant, reliable performance. Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail.
More Information
Manufacturer Part Number
L9090EURX
Features
Key features
Exceeds ANSI/BHMA Grade 1 operational and security standards Expansive list of configurations and options, including retrofit indicators 50 standard mechanical functions, custom functions also offered “The Original” universal lock case allows creation of 10 functions from a single lock body 14 finishes and 33 levers, two knobs, five roses and three escutcheon designs Supports standard, SFIC and FSIC cylinder formats Multiple key systems available – open, patented, restricted, geographic exclusive, UL 437
Electrical Key features
All mechanical features plus: Auto-detect 12/24 VDC Selectable EL/EU 10 electrified functions Advanced features: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility Leading energy efficiency that eliminates “hot levers” Advanced motor-driven electrified functions – quieter, smoother, more secure operation
Write Your Own Review
Key features
Exceeds ANSI/BHMA Grade 1 operational and security standards Expansive list of configurations and options, including retrofit indicators 50 standard mechanical functions, custom functions also offered “The Original” universal lock case allows creation of 10 functions from a single lock body 14 finishes and 33 levers, two knobs, five roses and three escutcheon designs Supports standard, SFIC and FSIC cylinder formats Multiple key systems available – open, patented, restricted, geographic exclusive, UL 437
Electrical Key features
All mechanical features plus: Auto-detect 12/24 VDC Selectable EL/EU 10 electrified functions Advanced features: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility Leading energy efficiency that eliminates “hot levers” Advanced motor-driven electrified functions – quieter, smoother, more secure operation
