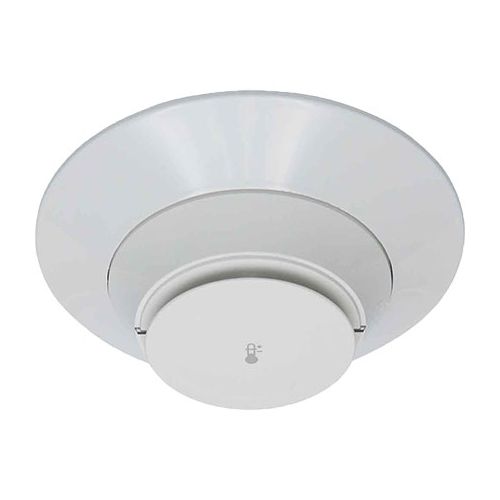

SK-HEAT-W Series Addressable Heat Detectors
The Silent Knight® SK-HEAT-W Series heat detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and advanced thermal technologies make the SK-HEAT-W Series ideal for both system operation and building design. The series includes a 135°F/57°C fixed-temperature, rate-of-rise, and a 180°F/88°C fixed high-temperature detectors and are direct replacements for the SK-HEAT Series heat detectors. The point ID address, set using rotary decimal switches, provide specific detector locations. These thermal detectors provide effective, intelligent property protection in a variety of applications.
• SK-HEAT-W offers 135°F fixed thermal detection.
• SK-HEAT-ROR-W offers 135°F fixed and rate-of-rise thermal detection.
• SK-HEAT-HT-W provides fixed high-temperature detection at 190°F.
| Manufacturer Part Number | SK-HEAT-W |
|---|---|
| Features | FEATURES AND BENEFITS
• Designed to meet UL 268 7th Edition • Sleek and stylish contemporary design • Advanced thermal technology for fast response • Fixed temperature model (SK-HEAT-W) factory preset to 135°F (57°C) • Rate-of-rise model (SK-HEAT-ROR-W), 15°F (8.3°C) per minute • High temperature model (SK-HEAT-HT-W) factory preset to 190°F (88°C) • Addressable by device • Rotary, decimal addressing (Refer to the Silent Knight panel manuals for device capacity) • Two-wire SLC connection • LEDs blink every time the unit is polled • 360°-field viewing angle of the visual alarm indicators (two bi-color LEDs); LEDs blink green in Normal condition and turn on steady red in Alarm • Integral communications and built-in device-type identification • Remote test feature from the panel • Built-in functional test switch activated by external magnet • Walk test with address display (an address of 121 will blink the detector LED 12- (pause)-1) • Low standby current • Built-in tamper-resistant feature • Designed for direct-surface or electricalbox mounting • Sealed against back pressure • Plugs into separate base for ease of installation and maintenance • SEMS screws for wiring of the separate base • Optional remote, single-gang LED accessory • Optional sounder, relay, and isolator bases • Optional flanged surface mounting kit |
FEATURES AND BENEFITS
• Designed to meet UL 268 7th Edition
• Sleek and stylish contemporary design
• Advanced thermal technology for fast response
• Fixed temperature model (SK-HEAT-W) factory preset to 135°F (57°C)
• Rate-of-rise model (SK-HEAT-ROR-W), 15°F (8.3°C) per minute
• High temperature model (SK-HEAT-HT-W) factory preset to 190°F (88°C)
• Addressable by device • Rotary, decimal addressing (Refer to the Silent Knight panel manuals for device capacity)
• Two-wire SLC connection • LEDs blink every time the unit is polled
• 360°-field viewing angle of the visual alarm indicators (two bi-color LEDs); LEDs blink green in Normal condition and turn on steady red in Alarm
• Integral communications and built-in device-type identification
• Remote test feature from the panel • Built-in functional test switch activated by external magnet
• Walk test with address display (an address of 121 will blink the detector LED 12- (pause)-1)
• Low standby current
• Built-in tamper-resistant feature
• Designed for direct-surface or electricalbox mounting
• Sealed against back pressure
• Plugs into separate base for ease of installation and maintenance
• SEMS screws for wiring of the separate base
• Optional remote, single-gang LED accessory
• Optional sounder, relay, and isolator bases
• Optional flanged surface mounting kit
