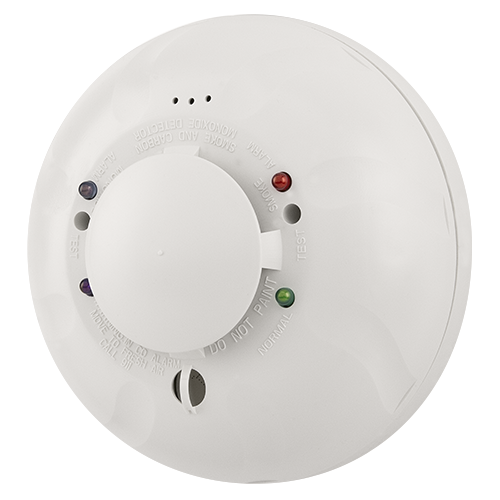

System Sensor COSMO-2W Carbon monoxide and smoke detector
**IN STOCK**
Best-in-class 2-Wire carbon monoxide (CO) and smoke detection technology in a single, system-connected device.
Main Features
- Sensing Technology: Electrochemical, Photoelectric
- Detectable Medium: Gas
- Detectable Gas: Carbon Monoxide
- Input Voltage: 35 V DC
- Form Factor: Ceiling Mount, Wall Mount
- Depth: 2.5"
- Diameter: 5.5"
- Weight (Approximate): 9.20 oz
Manufacturer Part Number | COSMO-2W |
---|---|
Features | Controls/Indicators Status Indicators Miscellaneous Physical Characteristics Wall Mount Power Description Input Voltage Range Technical Information Detectable Medium |
Controls/Indicators
Status Indicators
AlarmLED
Miscellaneous
Sounder: 85 dBA
Operating Voltage Nominal: 12/24 VDC
Alarm Current: 50mA Max
Standby Current: 50 µA Max
Reverse Polarity Current Maximum : 20 mA
Start-up Current Maximum : 200mA
Start-up Capacitance Maximum : .10 µF
Operating Temperature Range: 0 - 50° C (32 - 12a2° F)
Operating Humidity Range: 20-95% RH
Wiring Gauge: 14-22 AWG
Diameter: 5.5"
Sensitivity: 2.5%/ft nominal
Physical Characteristics
Ceiling Mount
Wall Mount
Weight (Approximate)
9.20 oz
Power Description
Input Voltage Range
8.5 V DC to 35 V DC
Technical Information
Detectable Medium
Gas
Sensing Technology
ElectrochemicalPhotoelectric
