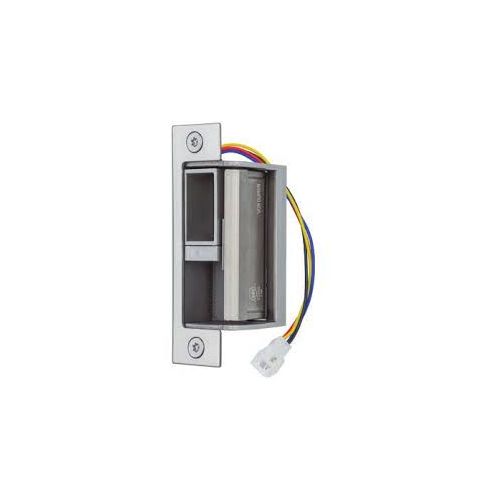

Von Duprin 6400-US32D Series Electric Strikes for Rim Exit Device
The 6400 fire-rated strike from Von Duprin combines strength and convenience in an “all in one” compact, easy-to-install design. The 6400 is UL Listed for 1500 lb static strength.
The unique design of the 6400 allows the installer to move the deadbolt keeper or plug and deadlatch ramp vertically, to align with a wide variety of mortise locks with offset latches. This, combined with a 1 ⁄8" horizontal adjustment, provides a highly flexible and easy-to-install design while also eliminating the need for special face plates.
A trim plate for frame cuts and a hands-free adhesive paper template are provided to simplify installation. Additional flexibility is provided by a “plug in” latch monitor switch that can be added in the field at any time after installation.
The power failure mode of the 6400 is fail-secure only for fire-rated openings. In a fail-secure application, the door is normally locked without power. To unlock the door power must be applied. The voltage of the 6400 is also field selectable 12 or 24 VDC and 12 to 24 VAC
Standard features
- Power failure mode: fail-secure only for fire-rated openings
- Voltage: 12 or 24 VDC and 12 to 24 VAC voltage is field selectable § Finish: Stainless steel, satin (US32D)
- Centerline face plate included for centerline entry
- Trim plate included
- Adhesive paper template included
| Manufacturer Part Number | 6400-US32D |
|---|---|
| Features | Features and Benefits
|
Features and Benefits
- Vertical adjustment of the deadbolt keeper or deadlatch ramp allows for alignment with a wide variety of mortise locks with offset latches
- Field selectable voltage 12 or 24VDC and 12 to 24VAC
- Accommodates 3⁄4" latch projection
- Accommodates up to 1" deadbolt (for night latch application only, bolt will not release)
- Horizontal adjustment of up to 1⁄8" for misaligned frames
- Heavy-duty stainless steel construction
- Plug connectors are furnished for ease of installation and removal during strike servicing
- Optional plug-in latch monitor can be added in the field
- Tamper-resistant screws included
- Hex and security driver bit included
- Low current draw (0.19 amps @ 24 VDC)
- Unique solenoid design prevents keeper from heating up
- UL Listed for 1500 lb static strength, UL 1034 burglary-resistant listed & UL 10 C 3 hour fire-rated (fail-secure only)
- Meets BHMA A156.31, Grade 1 for endurance and strength § Dynamic strength 70 ft-lbs
- Endurance 2,000,000 cycles § 630 Satin stainless finishs
